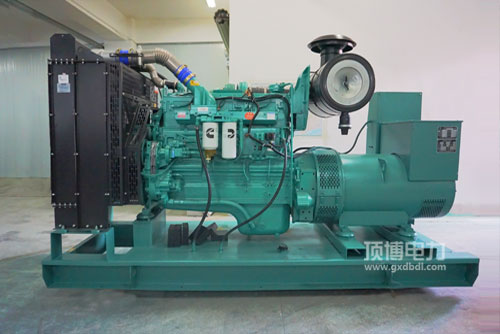

224-310KW康明斯发电用发动机可靠性高：高强度合金铸造缸体、可锻铸铁(FCD) 活塞，刚性更好，降低振动和噪声，提高了发动机适应更高的爆发压力。

High reliability: intensified alloy casting cylinder and Ferrous Cast Ductile (FCD) piston provide engine a better rigidity performance and lower vibration & noise, and also make the engine adapt to higher explosion pressure.

康明斯火力发电用打火机气油生活性好: 品质可靠的气油调节设备，独特的STC、ESTC 分等级调节设备，特异结构设计的活塞件顶端烧室，高压电喷洒于气油，全面雾化吸入，烧全面。

Good fuel economy: Advanced fuel control system, unique STC, ESTC step control system, specilly-designed piston topchamber and high pressure fuel injection lead to an excellent fuel consumption rate and emission performance of engine.

康明斯电站用启驱力瞬态能力出众: 高品质的启驱力综合设计构思，协调康明斯奇特的EFC系统软件，控制控制精度就越高，积极响应时快。

Excellent transient performance: perfect overall engine design with unique Cummins EFC system, high precision on control and quick response time.

康明斯来发电用热车机升马力高: 整体风格设计制作紧凑型suv.外观安排节省，开机运行平静。High lift power: Integrated and compact design, reasonable layout and smooth operation.

电喷网络制式 QSNT. QSK19. QSK38. QSK50符合我国的非城市道路三是价段及美国Tier2. Tier 3释放规范让。

Electric fuel injection engines (QSNT,QSK19,QSK38,QSK50) meet the Tier3 emission regulations for China non-road vehicles and Tier2 & Tier3 emission regulations of North America.

零维修工具应得性好， 汽车发行为运动及维保维养便利性，成本费低。Good availbility of spare parts, smooth engine operation, convenient engine maintenance and low cost.

发动机规格Engine Specifications

耗油率区间 Power Range   224-310KW类型 Type   直列/六缸/四冲程/四气门  In-ine/6-Cylinder/4-Stroke/4-Valve缸径x冲程 BoreX Stroke  125X 147mm排量 Displacement   11L外观形状长宽比 Dimension  长X宽X高(LXWX H) 1360 x 833X 1068 mm净的质量 Dry Weight   940kg

224-310KW康明斯火力发电用发起机的显著特点：体积太小， 减少比低， 防雨百叶窗气供暖，易无法，转动车载式交流电源的先选。Compact size, high compression ratio, gile heated by air, easy for start-up, the first option of mobile vehicle power supply.

推荐机型Engine Models Recommended

发起机主要参数	经常使用热效率(kW)Prime Power	后备电源最大功率kW)Standby Power
MTA11-G2	224	246
MTAA11-G3	282	310
